用於工業溫度監控的熱像儀
TIM 熱像儀設計用於非接觸式測量 -20 °C 至 900 °C 的表面溫度。無論是在低溫（如冷卻鏈）還是在高溫（如玻璃和金屬加工）條件下，都能實現對溫度關鍵過程的有效監控。紅外線熱像儀的熱靈敏度高，非常適合執行精確的動態任務。不同的性能等級可為各種應用選擇合適的型號。紅外線線熱像儀是通過 USB 接口連接，該接口還提供電源。

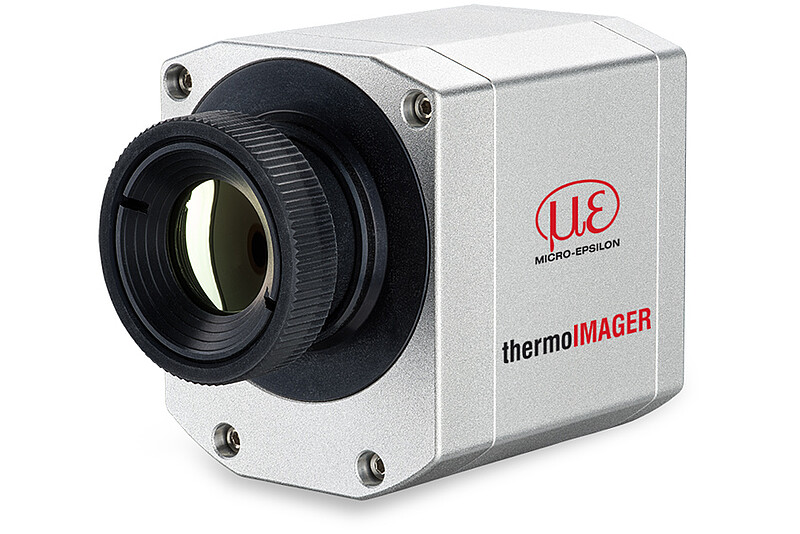

The new thermoIMAGER TIM QVGA infrared camera offers extremely high optical resolution of 382 x 288 pixels. It provides pin-sharp images and is therefore ideal for very small objects which can hardly be detected using common cameras. The maximum thermal sensitivity of 75 mK enables detecting the finest temperature differences reliably. However, the camera remains very small and flexible in its application covering a large temperature range of -20 °C up to 900 °C.
- Measuring ranges: -20 to 100 °C / 0 to 250 °C / 150 to 900 °C
- Optical resolution 382 x 288 pixels
- Spectral range 8 to 14 µm
- Excellent thermal sensitivity (NETD): 75 mK
- Image recording in real time at 80 Hz
- Power supply and operation via USB interface
- Smallest camera in its class (46 x 56 x 68-77 mm)
- IP67
- Digital communication via RS232 or DLL for software integration

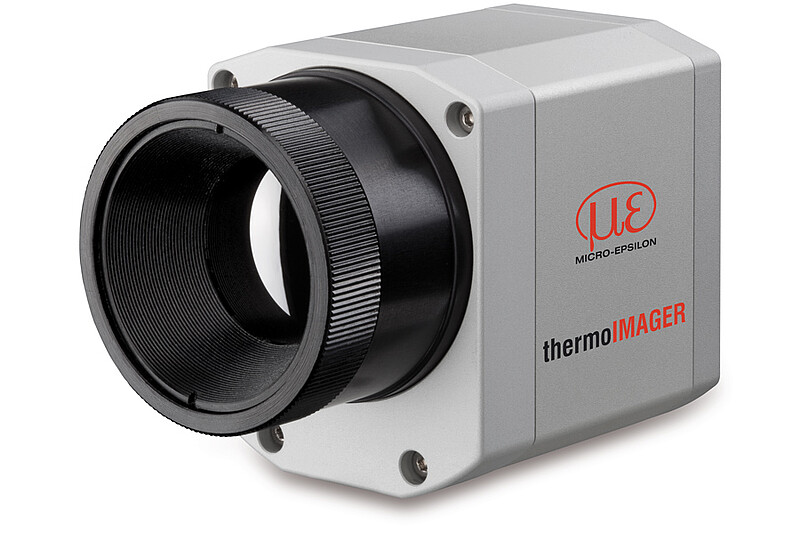

The thermoIMAGER TIM VGA infrared camera is the smallest VGA-resolution thermal imaging camera in the world, providing thermal images in real time due to its optical resolution of 640 x 480 pixels. With dimensions of 46x56x76-100 mm and weighing just 269 - 340g (incl. optics), the thermoIMAGER TIM VGA is one of the most compact thermal imaging cameras on the market. The scope of supply includes the extensive TIM Connect analysis software.
- Measuring ranges: -20 to 100°C / 0 to 250°C / 150 to 900°C
- Optical resolution 640x480 pixels
- Spectral range: 8 – 14 µm
- Excellent thermal sensitivity (NETD): 40 mK
- Lenses: 33°, 90° FOV
- Image recording in real time at 32Hz
- Supply and operation via USB
- Extremely lightweight, robust and compact
- Analogue input and output, trigger interface
- Protection class IP67
TIM NetPCQ is a professional, embedded industrial PC solution with passive cooling (fanless) for thermoIMAGER applications and is suitable for top hat rail mounting. The NetPCQ and the TIM camera can be operated in combination as a standalone system. Remote maintenance via Ethernet is possible. Data provided by the TIM camera can be stored directly on the NetPCQ where customer-specific software can also be installed. A recovery-stick is included in the scope of delivery.
- Supports all thermoIMAGER TIM models
- Up to 80 Hz (TIM QVGA), up to 32 Hz (TIM VGA) frame rates
- TIMConnect software included
- Monitor via VGA (analog)
- Integrated watchdog feature
- Optional: up to 20 m USB cable, high temperature USB cable, extendable up to 100 m Ethernet cable

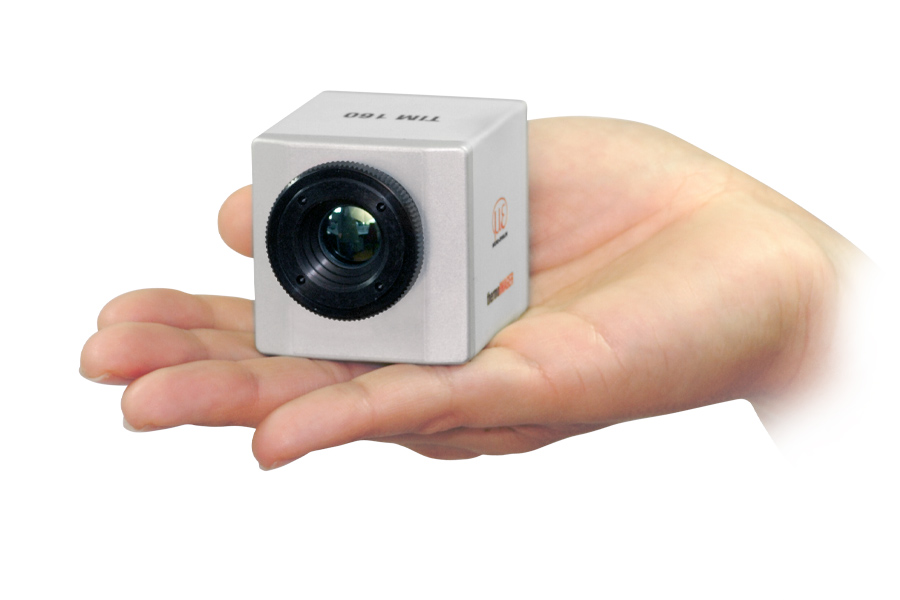

重量極輕、堅固耐用、外型精巧
thermoIMAGER 紅外線熱像儀重量輕、外型精巧，非常適合移動與固定的應用。
容易處理與整合
先進的接口概念可將紅外線熱像儀整合到網路和自動化系統中：
- USB 線材透過 Ethernet 可延長至 100 m，透過玻璃光纖可延長至 10 km
- 作為類比輸入/輸出（0/4-20 mA）和數位輸出（無電勢繼電器輸出）的過程接口 (PIF)
- 經由資料庫 (SDK) 和 COM 端口的軟體接口
無須授權即可使用的軟體
TIM Connect 即時軟體是一款功能極為強大的熱成像軟體，隨每台紅外線熱像儀一起提供。此軟體可針對熱像儀進行參數設置，並自動進行過程和品質控制。可根據相應的過程設置單獨的報警器閾值。隨附的免費軟體與 Windows 7 和 10 相容。
大溫度測量範圍
Micro-Epsilon 的熱像儀適用於從 -20 °C 到 900 °C 的廣泛測量範圍，從冷卻鏈或實驗室中的低溫到金屬加工應用中的高溫皆可。
