wireSENSOR WPS-MK

Low cost OEM model

Draw-wire sensors for serial integration & OEM

The K and MK draw-wire sensors are specially designed for series applications with large numbers of pieces. The user benefits from an excellent price/performance ratio and compact sensor dimensions, therefore gaining new potential in design and cost optimization. As well as analog versions with potentiometer, current or voltage output, digital versions with incremental or absolute encoders are available.

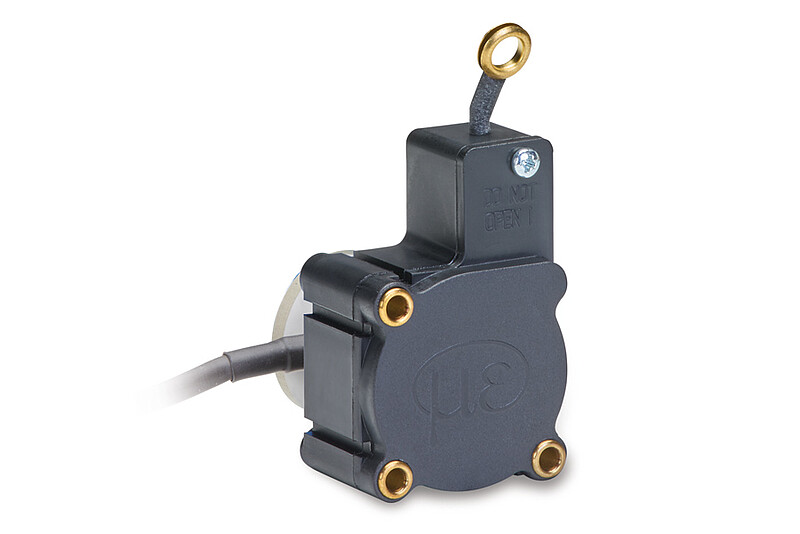

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring ranges (mm): 500 | 750

  2. Linearity ± 0.05 % FSO

  3. Output: incremental encoder

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

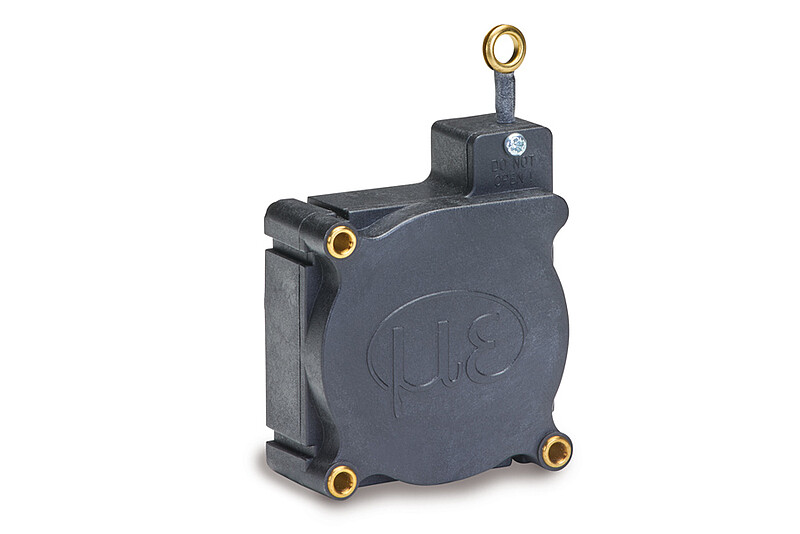

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring ranges (mm): 1,000 | 1,250

  2. Linearity ± 0.1 % FSO

  3. Output types: potentiometer, voltage, current

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

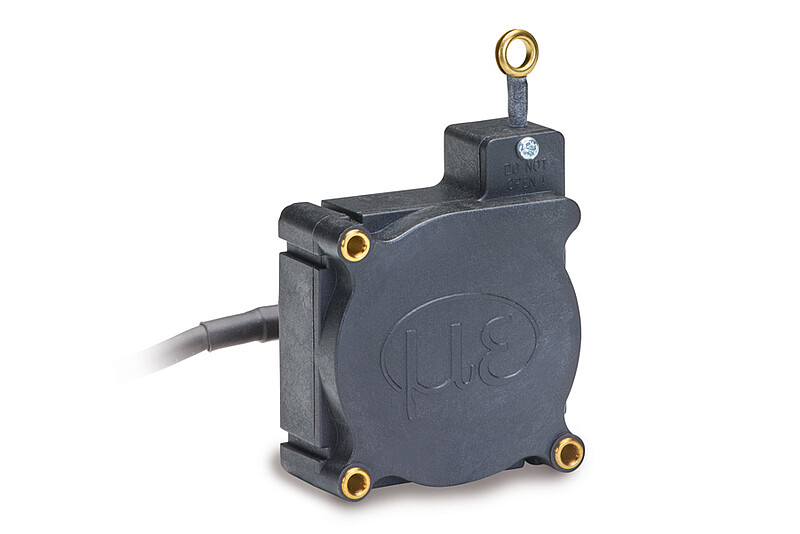

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring range (mm): 1,250

  2. Linearity ± 0.05 % FSO

  3. Output: incremental encoder

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

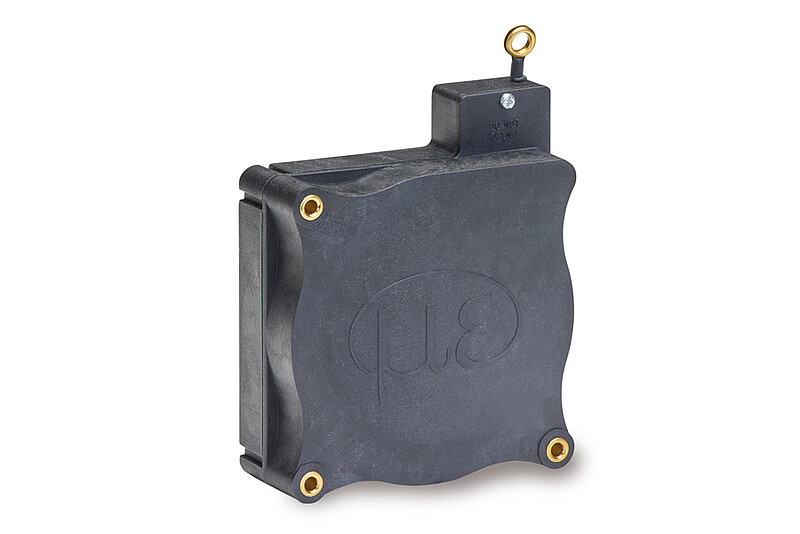

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring range (mm): 1,500

  2. Linearity ± 0.15 % FSO

  3. Output types: potentiometer, voltage, current

  4. Low cost model, ideal for OEM applications

  5. Customer-specific designs for series applications

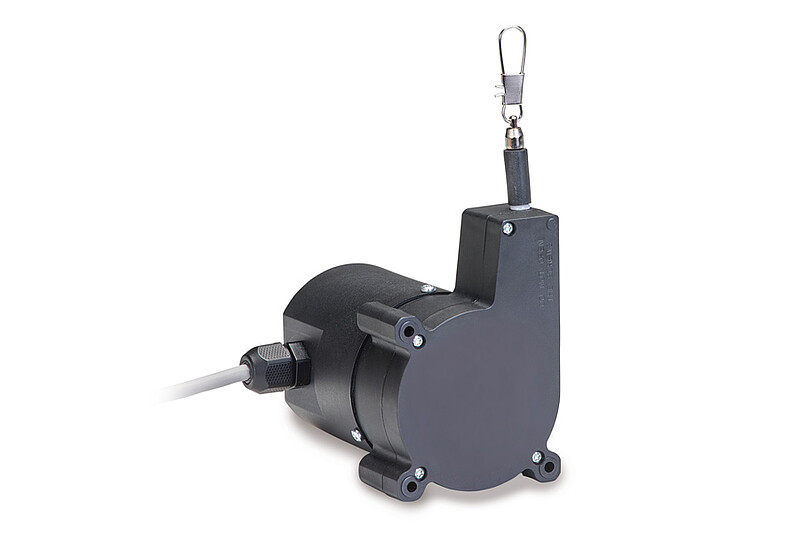

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring range (mm): 2,400

  2. Linearity ± 0.05 % FSO

  3. Output: incremental / absolute encoder

  4. Low cost model, ideal for OEM applications

  5. Customer-specific designs for series applications

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring range (mm): 2,100

  2. Linearity ± 0.25 % FSO

  3. Output: potentiometer

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring range (mm): 2100

  2. Linearity ± 0.05 % FSO

  3. Output: incremental encoder

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

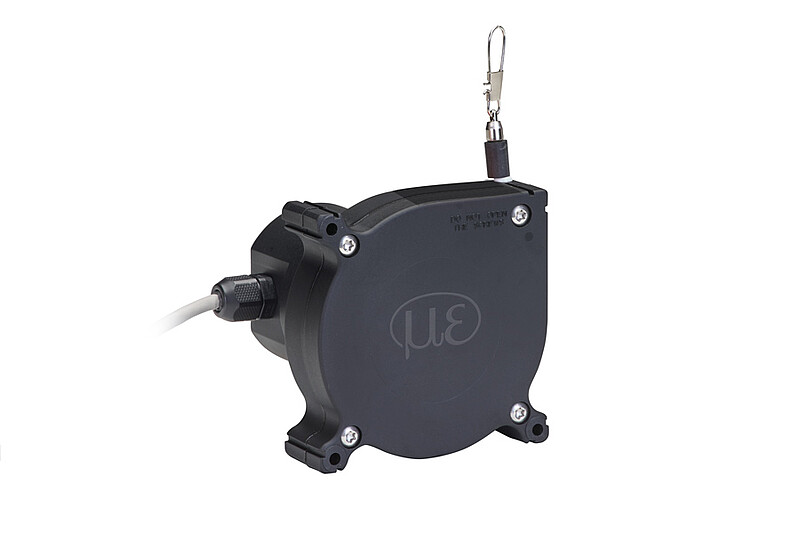

The MK88 is specially designed for mobile applications in series such as mobile cranes or mobile working platforms. The combination of compact size, robustness and price makes the MK88 series unique, offering new potentials in design and cost optimization.

Characteristics

  1. Measuring ranges (mm): 2300 | 3500 | 5000

  2. Temperature range: - 20 ... + 80° C (on request: -40 ... +85 °C)

  3. Linearity ± 0.15 % FSO

  4. Output types: potentiometer, voltage or current

  5. Protection class: IP65 (on request: IP67)

  6. Smallest design in this class

  7. Customer-specific designs for series applications

The MK88 is specially designed for mobile applications in series such as mobile cranes or mobile working platforms. The combination of compact size, robust design, measuring range and price makes the MK88 unique, offering new potentials in design and cost optimization.

Characteristics

  1. Measuring ranges (mm): 2300 | 3500 | 5000

  2. Temperature range: - 20 ... + 80° C (on request: -40 ... +85 °C)

  3. Protection class: IP65 (on request: IP67)

  4. Output type: CANopen

  5. Linearity up to ± 0.15 % FSO

  6. Smallest design in this sensor class

  7. Customer-specific designs for series applications

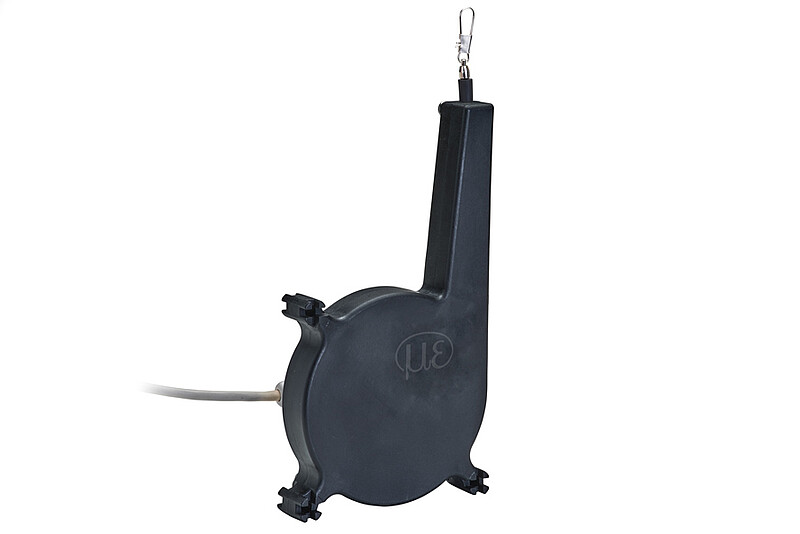

The MK miniature draw-wire sensors are specially designed for series applications with a large number of pieces. Due to the favorable price and the compact sensor size, new potential designs and cost optimization are the benefits to the user.

Characteristics

  1. Measuring ranges (mm): 3,000 | 5,000 | 7,500

  2. Linearity ± 0.15 % FSO

  3. Output types: potentiometer, voltage, current

  4. Smallest design in this sensor class

  5. Low cost model, ideal for OEM applications

  6. Customer-specific designs for series applications

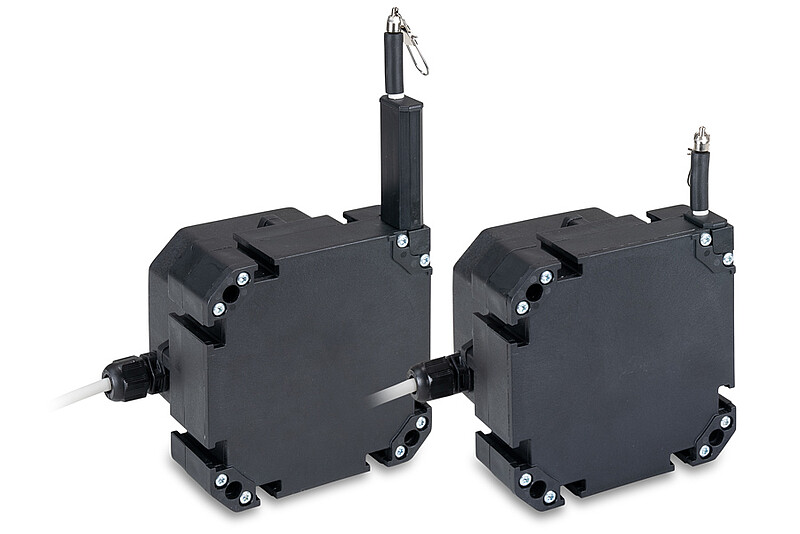

The K100 is specially designed for series use in mobile machines such as telescopic loaders or truck cranes. Its compact and robust housing (IP67/IP69K) made from glass-fiber reinforced plastic and its durable sensor design with separate drum and spring spaces offer increased protection against environmental influences. Specially in outdoor use, these sensors can be optimally adapted to the respective application.

Characteristics

  1. Measuring ranges: 1.5 | 2.5 | 3.5 | 5 | 8 m

  2. Temperature range: - 40 ... + 85°

  3. Linearity: ≤ ± 0.15 % FSO

  4. Protection classes: IP67 / IP69K

  5. Outputs: potentiometer, current, voltage

  6. Robust plastic housing

  7. Durable sensor design

  8. Compact housing for flexible integration

  9. Quick and low cost OEM customization

The K100 is specially designed for series use in mobile machines such as telescopic loaders or truck cranes and industrial applications. Its compact and robust housing (IP67/IP69K) is made from glass-fiber reinforced plastic. In addition, its durable sensor design with separate drum and spring chambers protects the sensor against environmental influences. Specially in outdoor use, the sensors can thus be optimally adapted to the respective application.

Characteristics

  1. Measuring ranges: 1.5 | 2.5 | 3.5 | 5 | 8 m

  2. Temperature range: - 40 ... + 85° C

  3. Linearity: ≤ ± 0.05 % FSO

  4. Protection classes: IP67 / IP69K

  5. Output: CANopen

  6. Robust plastic housing

  7. Durable sensor design

  8. Compact housing for flexible integration

  9. Quick and low cost OEM customization

Interface and signal processing units
