mainSENSOR MDS

Magneto-inductive displacement sensors for industrial applications

Magneto-inductive displacement sensors with standard design

The magneto-inductive MDS-35/-45 sensors are specially designed for industrial environments. The sensors are available in M12, M18 and M30 stainless steel housings or with a flat plastic housing. The pressure-resistant, stainless steel housing is ideally suited to harsh, industrial environments (dirt, oil, chemicals) and the food industry.

logo

Characteristics

  1. Housing options: M12/M18/M30/flat plastic housing
  2. High temperature stability
  3. Frequency response 3000Hz (-3dB)
  4. Output voltage / current
  5. Protection class IP67 and IP69K
  6. Pressure resistance up to 400 bar (front)
[]
聯絡
Luigi Yang
聯絡表單
Your request for: {product}
請填入計算結果已防止系統誤判為機器人
captcha
* 必填資訊
我們謹慎的保護客戶個資,詳見

Interface and signal processing units

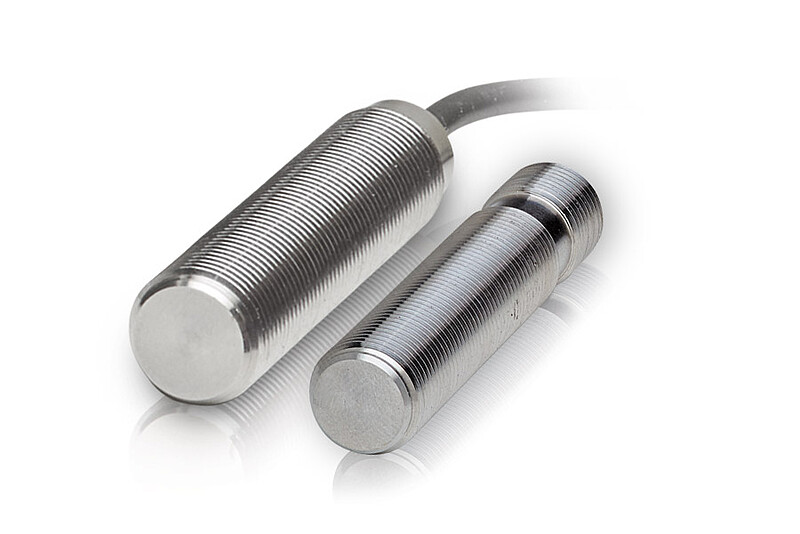

Magneto-inductive M12 sensors are industrial-grade models for restricted installation spaces. Available with either a connector or a cable, they are ideally suitable for harsh and demanding environments due to a pressure resistant housing made from stainless steel. For temperatures up to 120 °C, the high temperature MDS-35-M12-HT model is available which is also equipped with either a cable or a connector.

Characteristics

  1. M12 design for restricted installation space

  2. Frequency response 5000 Hz (-3dB)

  3. Protection class IP65, IP67 or IP68

  4. Pressure resistance up to 100 bar (front)

  5. Ideal for temperatures up to 120 °C

The MDS-45-M18 sensor is the industry-standard version of magneto-inductive sensors. The M18 design enables standardized installation and the robust stainless steel housing allows for the sensor to be installed in demanding industrial environments (dirt, oil, chemicals) or also in the food industry.

Characteristics

  1. Standardized housing in M18 design

  2. Frequency response 3000 Hz (-3dB)

  3. Protection class IP67

  4. Higher protection class available on request

  5. Pressure resistance up to 400 bar (front)

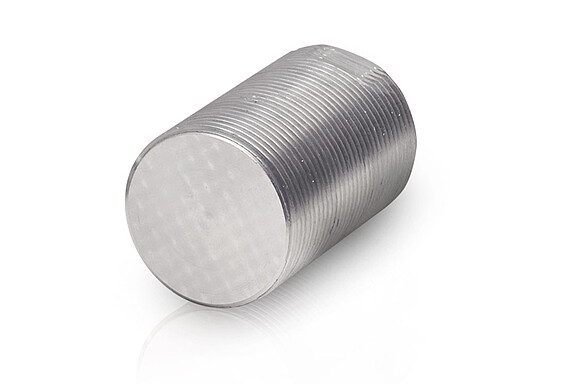

The MDS-45-M30 is the industry-standard version of magneto-inductive sensors. The M30 design enables standardized installation while the robust stainless steel housing is ideally suited to applications in harsh industrial environments (dirt, oil, chemicals) or in the food industry.

Characteristics

  1. Standardized housing in M30 design

  2. Frequency response 1000 Hz (-3dB)

  3. Protection class IP67

  4. Higher protection class available on request

  5. Pressure resistance up to 40 bar (front)
