Welding automation

Automated welding processes make welding operations faster and more repeatable. The top priority here is maximum productivity along with consistent quality. In modern spot welding, additive welding processes and robot welding, all process steps are clocked and carried out with the highest precision. In this respect, high precision sensors from Micro-Epsilon impress in numerous measurement tasks and are used, e.g., for control, intensity control and weld path planning.

3D component scan before laser cladding

With laser cladding, the component surface is melted by a laser beam and joined to form a new, pore-free layer by the addition of a powdered filler material. Prior to laser processing, the components are scanned with a scanCONTROL laser scanner…

了解更多
Component surface is melted by laser beam

Distance control with fully automatic laser welding

In fully automatic welding units, welding head positioning is crucial for the quality of the welded joint. In order to position the welding head at the correct distance, optoNCDT 1900 laser sensors are used. These measure the distance from the…

了解更多
Checking the positioning of welding head with optoNCDT 1900

Sheet edge measurement with laser welding using laser scanners

Automated robotic welding cells monitor the quality of pipes with longitudinal welding on the basis of several points. On the one hand, the edge position must be known along the sheet edge length while also ensuring the optimal alignment of the…

了解更多
Sheet edge measurement with laser welding using laser scanners

Measuring the electrode travel in resistance welding

In automatic welding machines, eddy current sensors from Micro-Epsilon ensure high quality welded joints while measuring the travel of the electrodes. The non-contact displacement sensors detect the axial displacement which is influenced by…

了解更多
High-quality welded joints thanks to eddyNCDT eddy current sensors

Color sensors for the presence check of welding wires

When welding components, the weld seam is automatically inspected for quality assurance purposes. The inspection is performed using CFO100 color sensors which detect the weld seam while the component is being rotated. As the weld seam has a…

了解更多
Color sensors for the presence check of weld seams

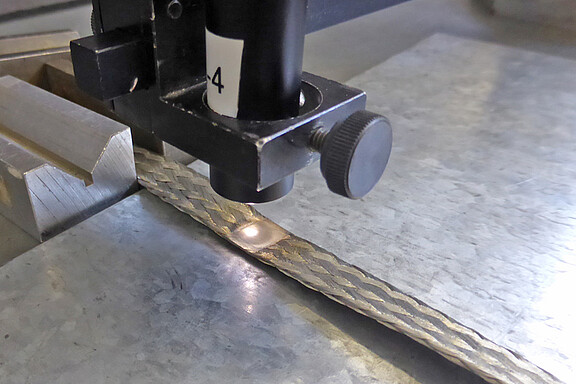

Color sensors for automatic detection of weld spots

Brass strips are joined based on the spot welding method. CFO color sensors are used to automatically recognize the weld spots prior to further processing. The multi-teach function allows for the color shades of the shiny weld spots to be…

了解更多
Color sensors for automatic detection of weld spots

Focal point control in additive manufacturing

With additive manufacturing methods such as selective metal melting, the focal point control of the laser is crucial for the process speed and the quality. In order to determine the distance between the print head and the powder surface and to…

了解更多
Focal point control in additive manufacturing

Measurement of cooling time in welding units

The documentation of welding parameters such as cooling time is achieved using high performance pyrometers from Micro-Epsilon. These short-wave temperature sensors enable non-contact temperature measurements of metallic surfaces. The pyrometers…

了解更多
Measurement of cooling time in welding units

Precise micrometers measure the diameter of welding wires

Optical micrometers from Micro-Epsilon are used to monitor the thickness of welding wires. In this respect, the X-Frame measuring system enables continuous diameter inspections. The X-Frames includes two laser micrometers that detect the wire…

了解更多
Precise micrometers measure the diameter of welding wires

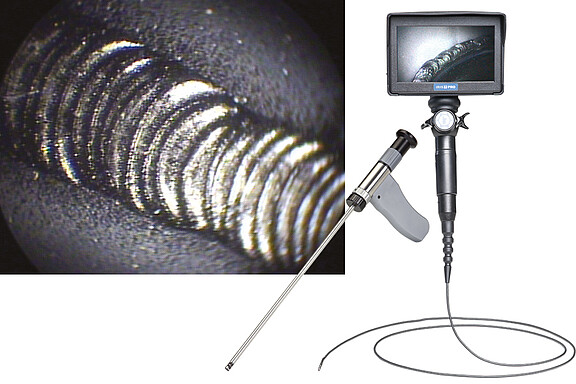

Endoscopes for optical weld seam inspection

Rigid and video endoscopes are used for the inspection of weld seams in difficult-to-access places. This visual inspection can be performed before, during and after the welding process depending on the respective task. Micro-Epsilon Eltrotec…

了解更多
Endoscopes for optical weld seam inspection

Optimizing weld seams with profile measurements

Inrotech A/S in Denmark relies on sensors from Micro-Epsilon to achieve optimal quality of weld seams in a fully automatic process. The company has developed a welding robot called "Inrotech-Crawler" which calculates welding processes in advance…

了解更多
Optimizing weld seams with profile measurements

Weld seam tracking for pipeline inspection

For the maintenance of pipelines, the inspection of the outer weld seam is a decisive criterion. For this purpose, the profiles of the welds seams are inspected in a test station. In order to automate the inspection process, the test facility is…

了解更多
Weld seam tracking for pipeline inspection

Completely automatic 3D repair welding

scanCONTROL laser scanners are used for repair welding of large parts in order to determine the welding track and the robot path. First, the surface of the defective area is scanned by a laser scanner, which is guided over the surface by a robot.…

了解更多
Completely automatic 3D repair welding
