Medical technology

In medical technology, high standards apply with regard to quality, repeatability and compliance with narrow tolerances. These also apply for medical devices and apparatus construction, plant automation, the manufacture of medical technology products and the development and production of pharmaceuticals.

Thanks to high accuracy, integrability and the wide variety of models, sensors from Micro-Epsilon are used in versatile measurement tasks.

Measuring dental samples confocal

Confocal chromatic sensors are used to check the surface topography of dental samples. These sensors are distinguished by their high resolution and independence from the type of material surface involved. The desired area on the object being…

了解更多
Confocal measurement of dental samples

Non-contact thickness measurement of gelatin layers

Gelatin is often used in the shell of soft capsules. For the 100% thickness measurement of the conductive gelatin layer, capacitive displacement sensors from Micro-Epsilon are used, which provide non-contact and precise thickness values. …

了解更多
Non-contact thickness measurement

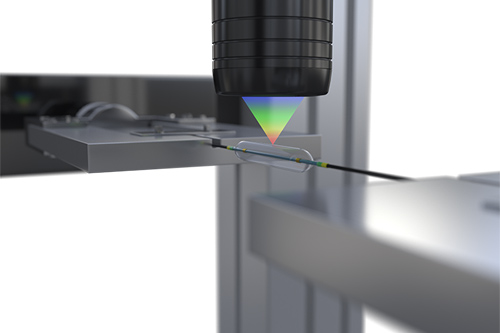

One-sided thickness measurement of tubes

In the manufacture and quality assurance of medical products, the thickness of tubes and membranes as well as the wall thickness of balloons are measured. Confocal chromatic sensors are used which measure the thickness or layers of transparent…

了解更多
One-sided thickness measurement of tubes

Precise positioning of a surgical microscope

Surgical procedures require a perfect view of the operating area. Here, the surgeon is often supported by a surgical microscope. To enable the surgeon to best position the microscope and to give the surgical team more room to move, the microscope…

了解更多
Fine positioning of the operating microscope

Filling level measurement trays

The narrow beam path enables the confocal sensors to measure in recesses. With the confocal measuring principle, measurements on liquids are possible, e.g. for precise filling level control in trays. …

了解更多
Filling level measurements trays

High resolution depth mapping of organic material

For optimal measurement of organic material, Micro-Epsilon offers the patented Blue Laser technology. With blue laser, significantly more precise measurement values can be generated on organic materials than would be possible with red laser. In…

了解更多
High resolution depth mapping organic material

Non-contact height measurement of culture media in Petri dishes

In microbiology, cell cultures are used for the analysis of so-called agar plates. When producing this culture medium, liquid agar-agar is filled into plastic Petri dishes, where it hardens and forms a gel-like, transparent layer. Capacitive…

了解更多
Non-contact height measurement culture media in Petri dishes

Position measurement in Computer Tomography (CT)

In the latest CT equipment, the most effective diagnoses are determined by how precise and fast the measurement systems are (speed and resolution), as well as their cost effectiveness. Irrespective of whether spiral, helical or dual source…

了解更多
Position measurement in Computer Tomography

Positioning of operating tables

Operating tables provide many adjustment options for the correct positioning of the patient during the operation. As well as the height, the horizontal position and angle functions can also often be adjusted. As the positioning is performed…

了解更多
Positioning of operating tables

Displacement sensors for position monitoring in equipment manufacturing

For the measurement of a position, e.g. the movement of a patient couch, draw-wire displacement sensors are used. As positioning tasks typically require only medium accuracy, sensors with potentiometer outputs are suitable here. Extremely precise…

了解更多
Position monitoring in equipment manufacturing with displacement sensors

Quality control of medical tablet stamps and dies

According to ISO 18084:2011, the press tools for the tablet production are subject to a continuous quality control. Due to complex geometry and a strongly reflecting surface, automatic inspection of stamps and dies has been difficult. Only the…

了解更多
Quality control tablet stamps and dies

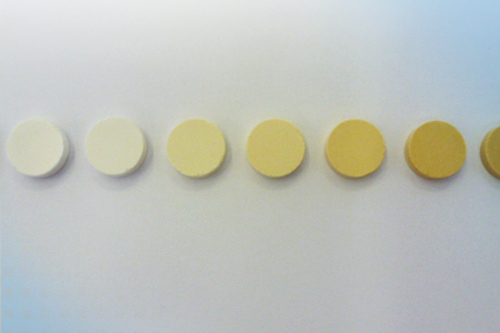

Color sensors monitor the ingredients of tablets

In pharmaceutical tablet production different ingredients are used. Changing the concentration of these ingredients affects the color of the tablet. The colorCONTROL ACS7000 inline color measuring system measures finely-graded color shades…

了解更多
Color monitoring of ingredients in tablets

Wear inspection of tablet stamps

Press tools for the tablet production are subject to a continuous wear control. Due to complex geometries and strongly reflecting surfaces, optical inspections are only possible with high precision measuring techniques. A confocal sensor and an…

了解更多
Verschleißprüfung Tablettenstempel
