capaNCDT 6110

精巧的單通道量測系統

精巧入門型電容式位移計

capaNCDT 6110 是新的入門型電容式單通道位移測量系統。系統中包含小型化的控制器、感測器和電纜線。capaNCDT 6110 極其小巧的尺寸和簡易的操作方式,非常適合於機器和設備的整合應用。

logo

產品特性

  1. 量測行程 (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
  2. 線性度: max. 0.025 µm
  3. 解析度: max. 0.005 µm
  4. 類比輸出 (電壓)
  5. 數位介面 RS485 (DT6120 控制器)
  6. 精巧型控制器
  7. 供應電源 24 VDC/55 mA (9 - 36 V)
  8. 適合訊號穩定與高精度的工業級應用
[]
聯絡
Luigi Yang
聯絡表單
Your request for: {product}
* 必填資訊
我們謹慎的保護客戶個資,詳見

多功能的小型控制器

capaNCDT 6110 適用於各類廣泛的應用,並且相容於所有的 capaNCDT 探頭 。由於採用 9V - 36V 的供應電源,此系統也能用在汽車與低電壓工業應用。量測數據可以使用電壓輸出或是選配RS485的數位輸出。

Capacitive sensor in the palm of a hand

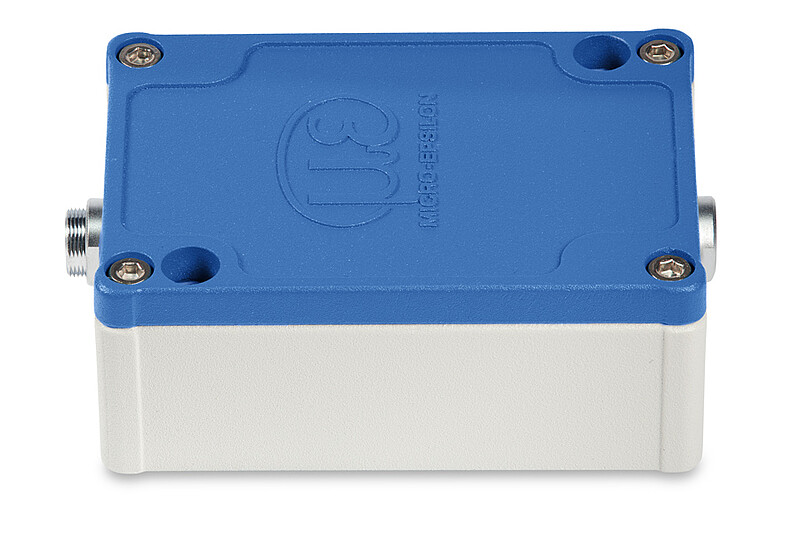

The capacitive DT6110 controller is the entry model for high resolution, capacitive displacement measurement. Due to its extremely compact size, the controller can also be integrated into restricted installation spaces. The DT6110 controller is compatible with all sensors and cables of the capaNCDT series. The DT6110/ECL2 controller provides an extended cable length.

Characteristics

  1. Resolution dynamic 0.015 % FSO (1kHz)

  2. Frequency response 1kHz (-3dB)

  3. Output 0...10 V (short circuit proof), optional: ±5V, 10...0V

The capacitive DT6112 controller is the entry model for dynamic measurement tasks. A bandwidth of up to 20kHz (-3dB) enables reliable monitoring of fast processes. The DT6112 controller is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.03 % FSO (20kHz)

  2. Frequency response 20kHz (-3dB)

  3. Output 0...10 V (short circuit proof), optional: ±5V, 10...0V

Equipped with an analogue output and an RS485 interface, the capacitive DT6120 controller is the entry model for high resolution, capacitive displacement measurement. Due to its extremely compact size, the controller can also be integrated into restricted installation spaces. The DT6120 controller is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.015 % FSO (1kHz)

  2. Frequency response 1kHz (-3dB)

  3. Output 0...10 V (short circuit proof)

  4. Digital RS485 interface
