capaNCDT 61x0/IP

IP68工業級的控制器適合惡劣的工業環境

專為工業應用而生的IP68 電容式量測系統

capaNCDT DT61x0/IP是用於位移，距離和位置測量的工業級電容式感測器系統。測量系統由感測探頭，工業級電纜和控制器組成，無需任何現場校準即可直接使用。由於其出色的溫度穩定性，抗磁場能力以及受IP68保護的堅固設計，capaNCDT DT61x0/IP可用於工業測量任務，例如發電機中的氣隙測量以及工廠和機械的調節。

Get in touch with us!
Download now: catalogs, manuals, software
logo

產品特性

  1. 量測行程 (mm): 0.5 | 1 | 1.25 | 2 | 3 | 4 | 6
  2. 線性度 max. 1 µm
  3. 解析度 max. 0.05 µm
  4. 電壓輸出
  5. RS485數位輸出 (DT6120/IP)
  6. 防塵防水鋁壓鑄外殼（IP68）
  7. 堅固耐高溫的感測器電纜
  8. 多樣的探頭選擇 (間隙量測專用探頭/PCB硬板設計/圓柱形設計/螺紋型設計)
[]
聯絡
Luigi Yang
+886 2 2268 0234
聯絡表單
Your request for: {product}
* 必填資訊
我們謹慎的保護客戶個資，詳見

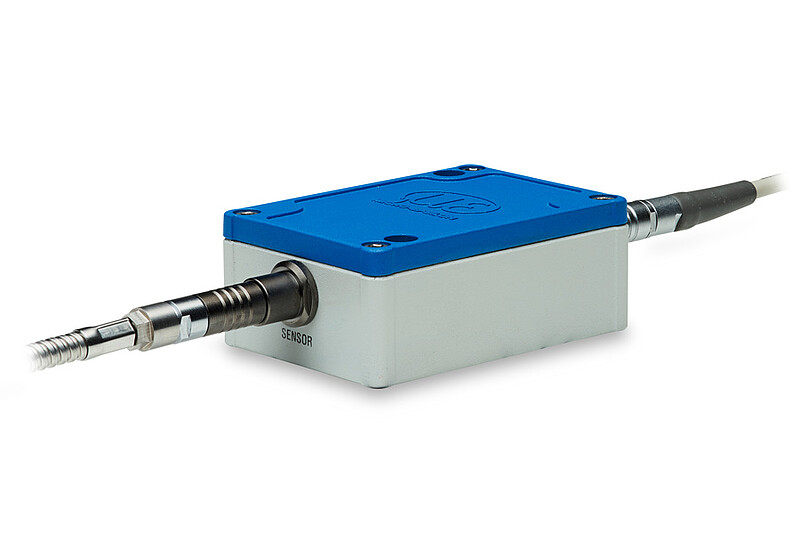

Controller DT6110/IP

Protected to IP68, the DT6110/IP capacitive controller is designed for measurement tasks in industrial environments. The DT6110/IP controller is available with either a voltage or current output, and can also be used in confined spaces due to its compact design.

Characteristics

  1. Resolution dynamic 0.02 % FSO (1 kHz)

  2. Frequency response 1 kHz (-3 dB)

  3. Output 0...10 V (short circuit proof)

Controller DT6110/IP

Classified to IP68, the DT6120/IP capacitive controller is designed for measurement tasks in industrial applications. In addition to either a voltage or current output, the DT6120/IP controller offers an RS485 interface. Due to its compact design, the controller can also be used in confined spaces.

Besonderheiten

  1. Resolution dynamic 0.2 % FSO (1 kHz)

  2. Frequency response 1 kHz (-3 dB)

  3. Output 0...10 V (short circuit proof)

  4. Digital interface RS485

Interface and signal processing units

IF1032/ETH 類比轉數位介面卡
IF2035 for Industrial Ethernet 工業通訊用介面卡
