3D sensor for the inspection of shiny surfaces
對閃亮物體進行表面檢測

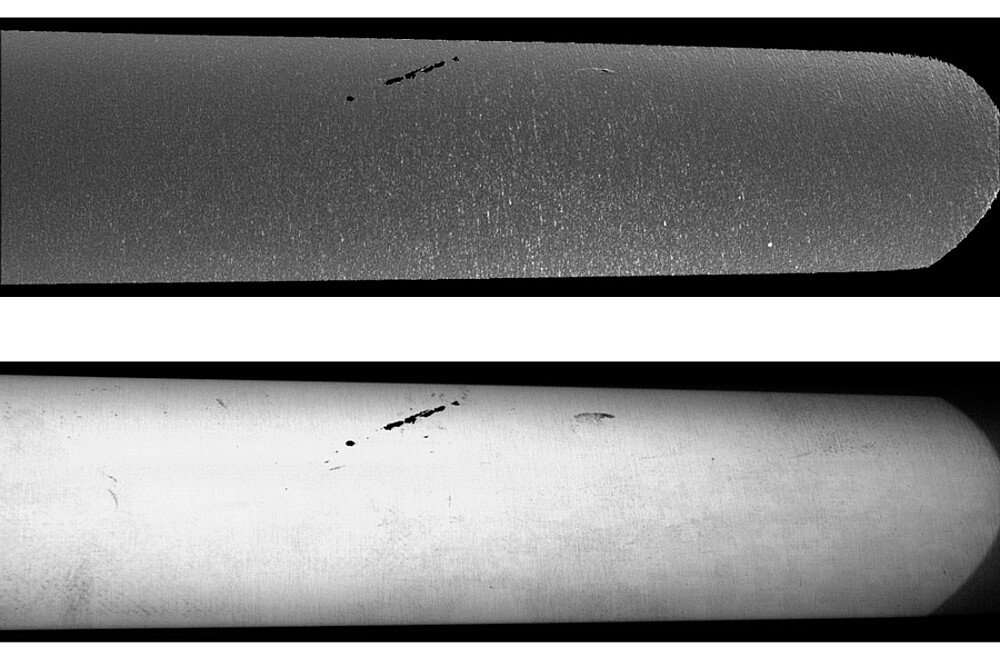

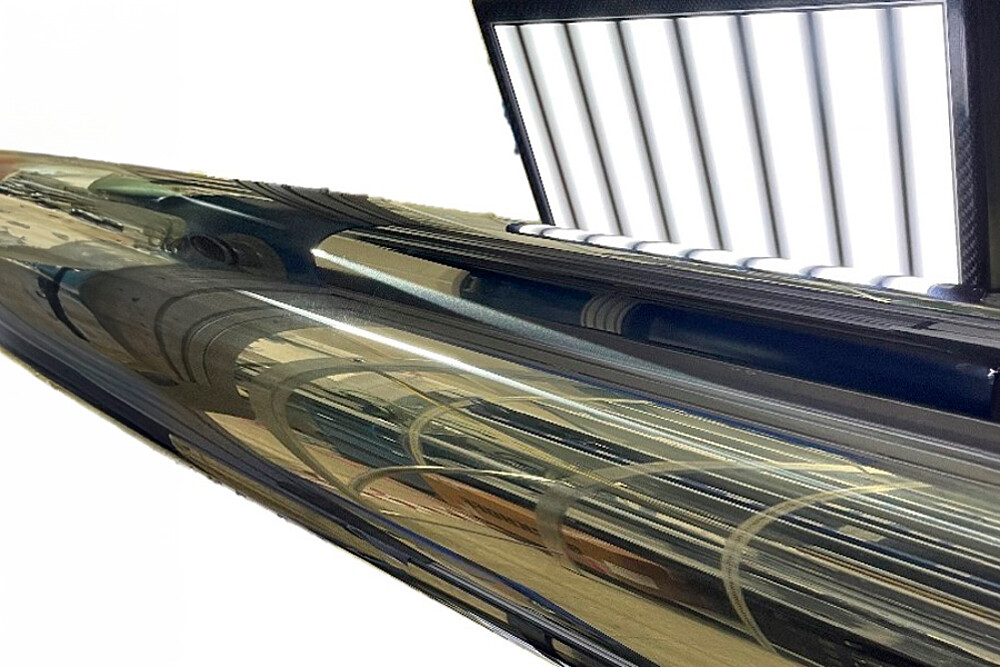

帶有整合控制器的 reflectCONTROL RCS110-245 專用於固定測量或整合到機台中。這款外型精巧的感測器可檢測閃亮表面上的異常,並通過軟體處理顯示出以反射率和曲率推算而出的圖像。GigE Vision 可以將表面圖像傳輸到各種圖像處理軟體包,以便進行進一步分析。
用於閃亮表面的3D偏擺法感測器

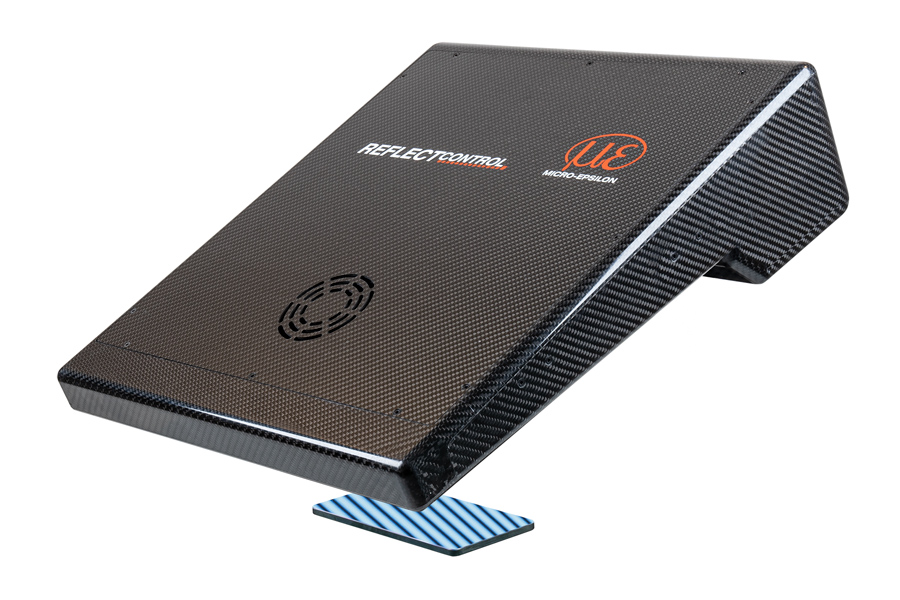

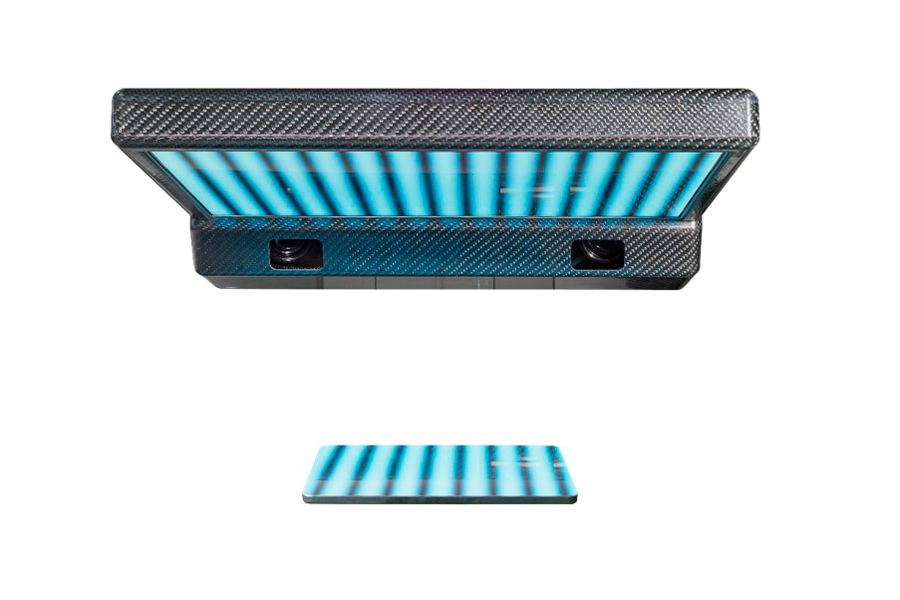

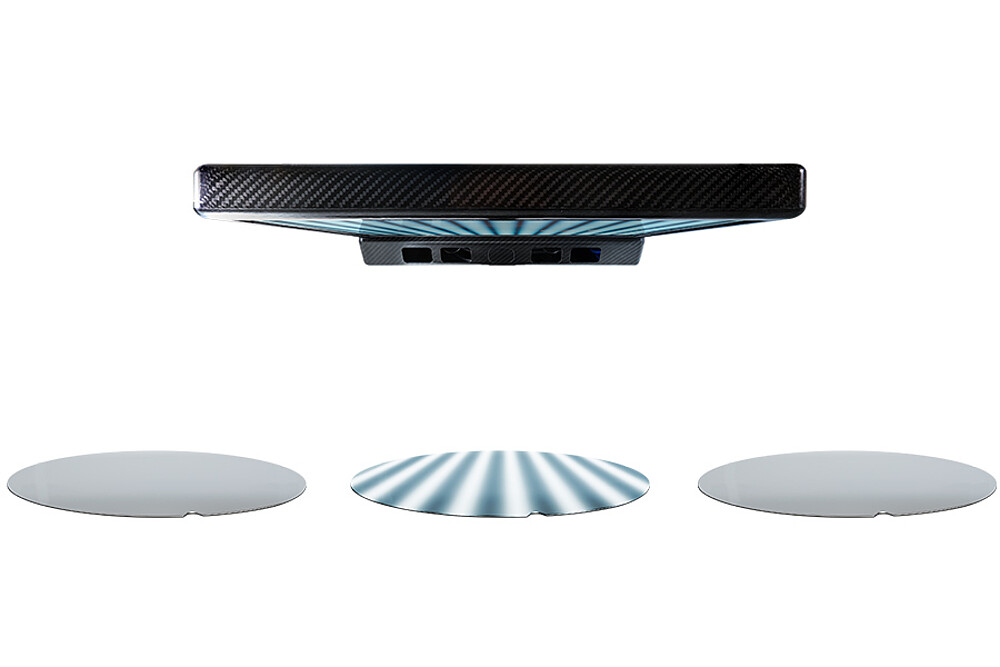

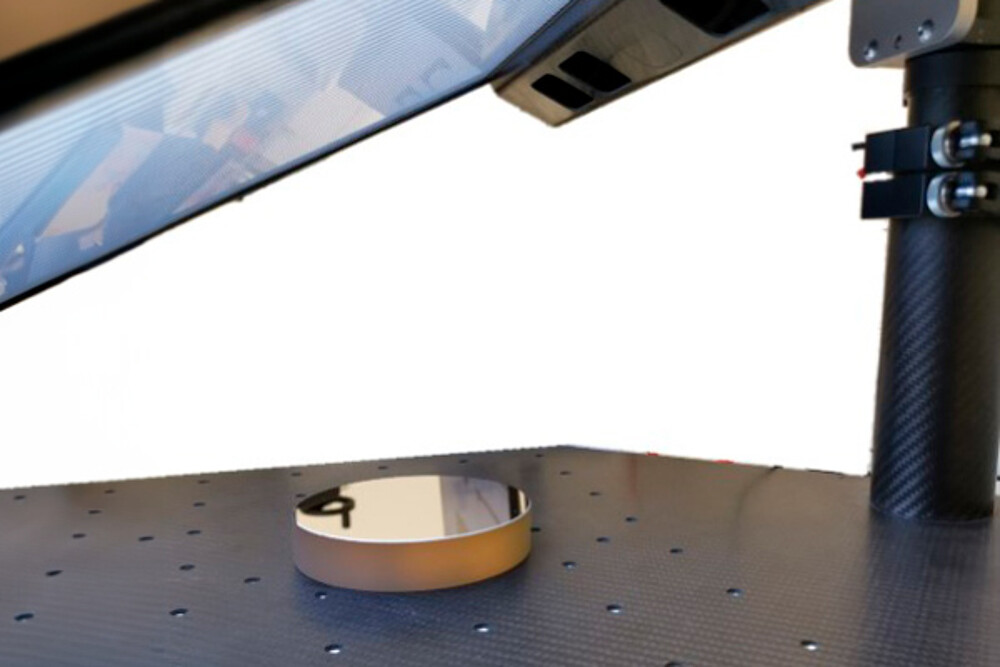

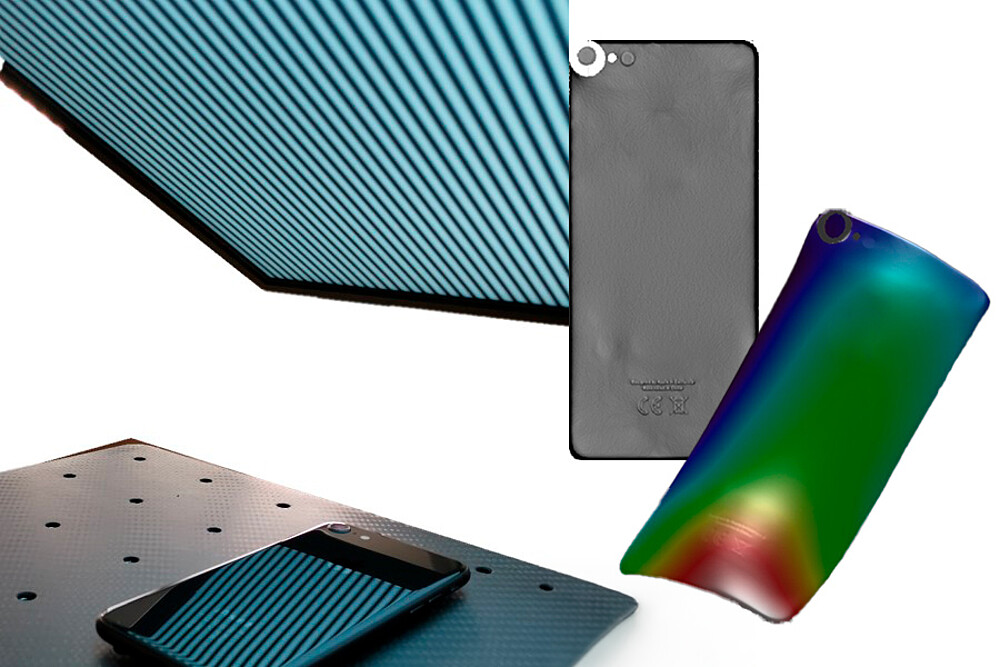

The reflectCONTROL RC130 is intended for shape measurements of shiny objects. This sensor displays a striped pattern which is mirrored by the surface of the measuring object into the sensor cameras. The sensor provides a 3D image of the surface which allows for the topology of the components (e.g. flatness, deflection, curvature) to be determined. The RCS130 model is specially optimized for measurement and inspection tasks, e.g., in production lines. Moreover, the sensor has a GigE Vision interface that offers GenICam compliant data.
reflectCONTROL RC130 用於測量閃亮物體的形狀。此感測器可顯示條紋圖案,測量物體的表面會將條紋圖案反射到感測器鏡頭中。感測器可提供表面的3D圖像,從而確定物體的幾何結構(如平面度、撓度、曲率)。RCS130 型專門針對生產線等測量和檢測任務進行了優化。此外,此感測器還配有 GigE Vision 接口,可提供符合 GenICam 標準的數據。
用於 3D 測量任務和檢測的 3DInspect 軟體

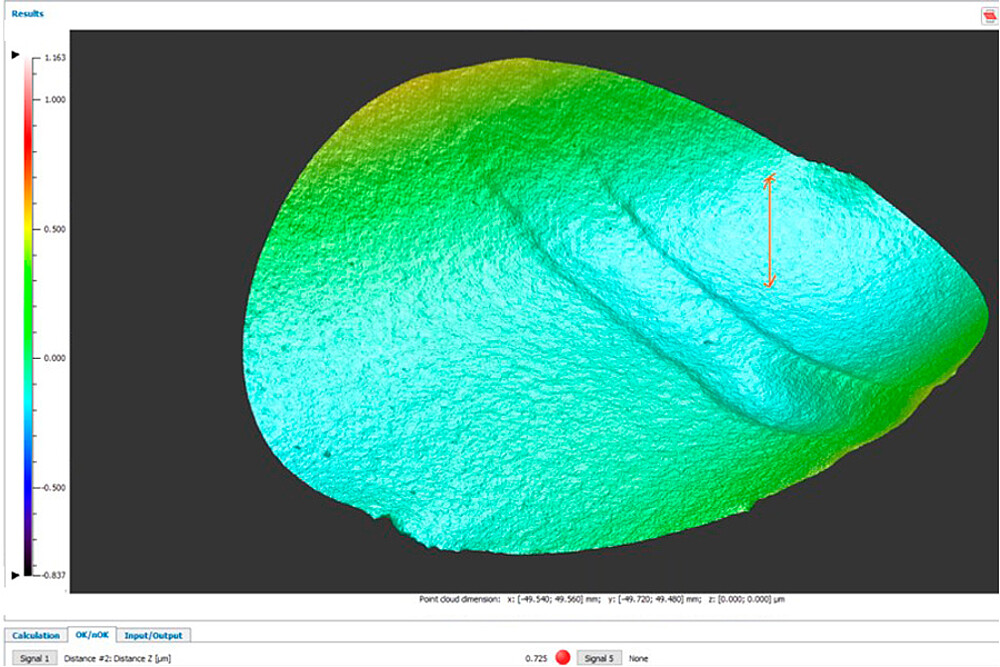

The 3DInspect software is a powerful tool for sensor parameter set up and industrial measurement tasks. This software transmits the measurement data from the sensor via Ethernet and provides the data in three-dimensional form. This 3D data is further processed, evaluated and assessed with 3DInspect measuring programs on the PC and, if necessary, logged and transmitted via Ethernet to a control unit. If required, these 3D data can be saved with the software. Furthermore, the set up and configuration of the sensor is possible via the software.
3DInspect 軟體是用於感測器參數設置和工業測量任務的強大工具。此軟體通過 Ethernet 傳輸感測器的測量數據,並以3D形式提供數據。這種3D數據可通過 PC 上的 3DInspect 軟體進行進一步處理和評估,必要時還可記錄並通過 Ethernet 傳輸到控制單元。如有需要,還可通過軟體保存這些 3D 數據。此外,還可以通過軟體對感測器進行設置。
通過 Micro-Epsilon 的 3D-SDK 進行軟體整合
reflectCONTROL 配備了容易整合的 SDK(軟體開發工具包)。SDK 基於 GigE Vision 和 GenICam 行業標準,包括以下功能模塊:
- 網路配置和感測器連接
- 全面的感測器控制
- 圖像傳輸控制
- 用戶自定義參數集管理
- C++ 範例程式和文檔
如果有 GenICam 客戶端,無需 SDK 也可通過 GigE Vision 訪問感測器。
