SHSInspect optics testing systems

Metrology solutions for optics

SHSInspect instruments are widely used in R&D and production when performance, reliability and efficiency counts most. Based on the state-of-the-art wavefront sensor SHSLab, Optocraft offers measurement modules, turnkey instruments and automated tools for a great variety of applications in the field of optics and optical systems, such as:

  • objective lens testing
  • testing of optical elements and windows
  • surface shape measurement
  • inline measurement and automation
logo

Why SHSInspect?

  1. Single shot, high speed measurement based on Optocraft‘s state-of-the-art wavefront sensor technology
  2. Broad spectrum of applications: low demand on coherence allows for a wide range of light sources
  3. Robust and reliable: minimal requirements on the operating environment. Produces accurate results even when vibrations cannot be eliminated
  4. Stand-alone or integrated into manufacturing environments
[]
聯絡
Luigi Yang
聯絡表單
Your request for: {product}
* 必填資訊
我們謹慎的保護客戶個資,詳見

Applications

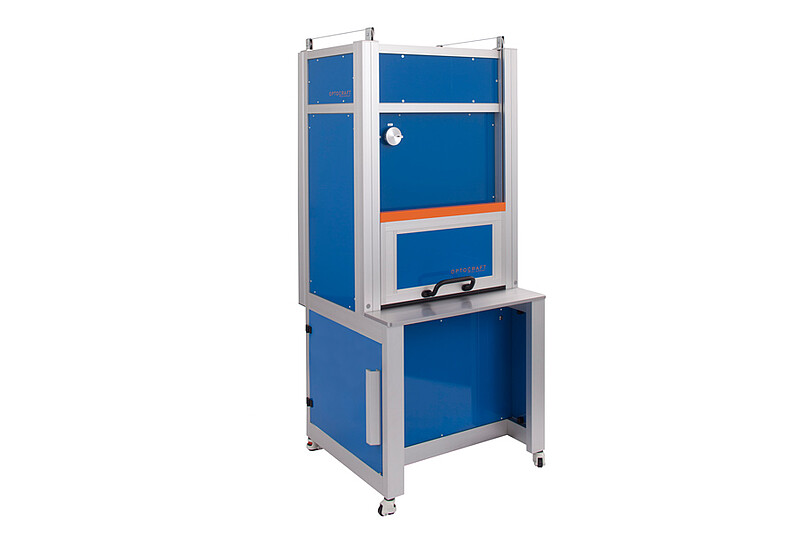

All-in-one instrument for multifunctional testing of objective lenses for microscopy, mobile phones, automotive, and more

  • High accuracy, automated measurement process
  • Wavefront, Zernike, PSF, MTF
  • On- and off-axis measurement
  • Chromatic aberrations
  • Polarisation effects
  • Optical elements: Plano optics, filters, spheric and aspheric lens elements, mirrors, etc
  • Optics for lasers and microscopy: Objective lenses with low and high NA, air and immersion, high end and mass production
  • Optics for consumer devices: R&D and quality control of lenses for mobile devices, camera lenses, etc.

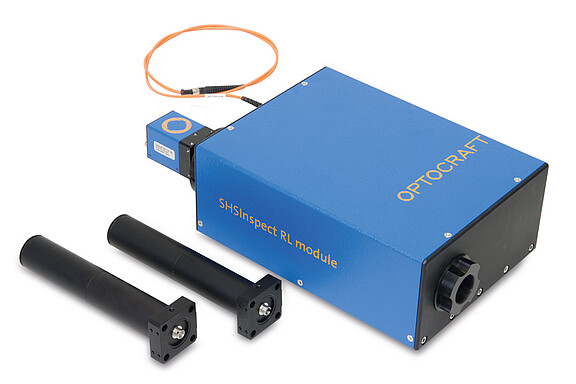

Optical measurement module for integration into customer set-ups.

  • Wavefront, Zernike, PSF, MTF
  • Alignment and final testing
  • Surface and radius of curvature
  • Optical elements: Plano optics, filters, spheric and aspheric lens elements, mirrors, etc.
  • Optics for lasers and microscopy: Objective lenses with low and high NA, air and immersion, high end and mass production
  • Optics for consumer devices: R&D and quality control of lenses for mobile devices, camera lenses, etc.
  • Astronomy, Space: Telescopes, instruments, etc.
  • Optics in mass production: Automated assembly, automated inspection, etc.

Measurement configurations: Imaging quality / transmitted light

  • Infinite-infinite
  • Plano measurement beam
  • Reference flat
  • Filters, telescopes, binoculars
  • Finite-finite
  • Spherical measurement beam
  • Reference sphere
  • Objectives, lenses, sub-systems
  • Finite-infinite 1
  • Plano measurement beam
  • Reference sphere
  • Objectives, lenses, sub-systems
  • Finite-infinite 2
  • Spherical measurement beam
  • Reference flat
  • Objectives, lenses, sub-systems

Measurement configurations: Surface shape / reflected light

  • Flat surface
  • Plano measurement beam
  • Reference flat
  • Mirrors, windows
  • Spheric surface
  • Spheric measurement beam
  • Reference sphere
  • Molds, tools, lenses

SHSWorks captures multiple properties of optics and optical systems – in just one single measurement

  • Wavefront, Zernike, PSF, MTF
  • Laser beam parameter calculation
  • Advanced reporting and data logging
  • Quick-setup using pre-defined configurations
  • Pass/Fail analysis
  • Remote control via TCP/IP

Why Optocraft?

Optocraft has been developing and manufacturing Shack-Hartmann wavefront sensors since 2001. With decades of experience in optical metrology and design, we constantly push the limits of this technology. Our systems can be found all over the world and cover even the most demanding applications. Our customers enjoy our dedicated and reliable support. We love to be challenged - try us!

All-in-one instrument for testing single lenses, filters, etc.

High accuracy, fast...

  • Wavefront, Zernike, PSF, MTF
  • Optical elements: Plano optics, filters, spheric and aspheric lens elements, mirrors, etc.
  • Micro optics: Micro optics down to a diameter of 0.05mm with high numerical aperture
  • Optics for consumer devices: R&D and quality control of lenses for mobile devices, camera lenses, etc.
